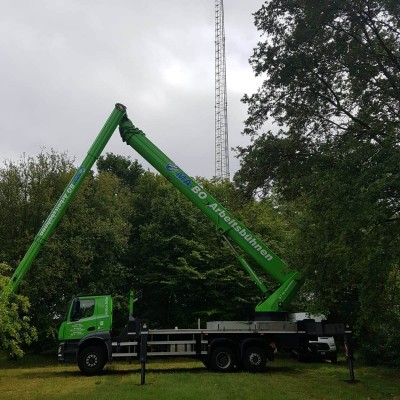

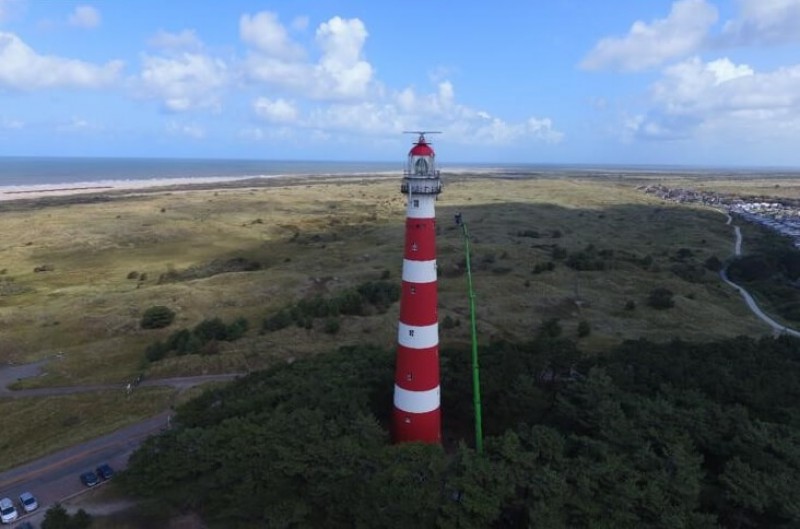

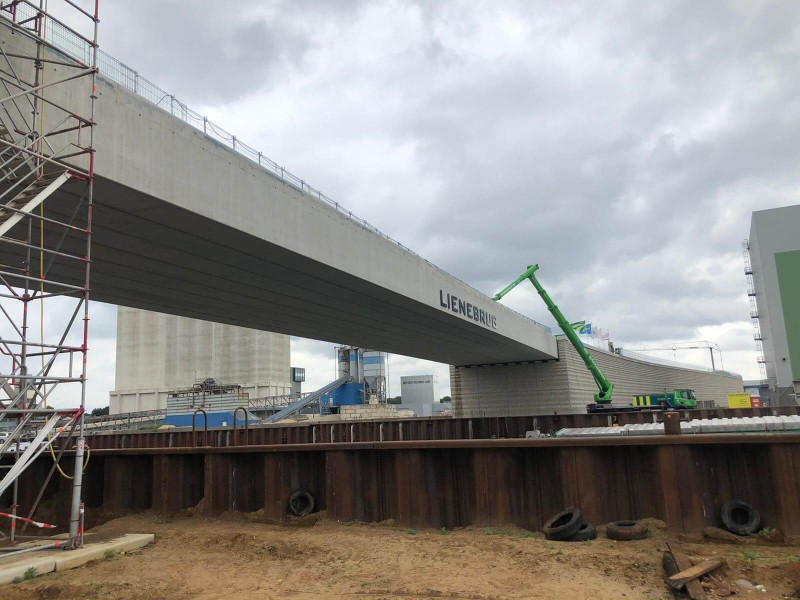

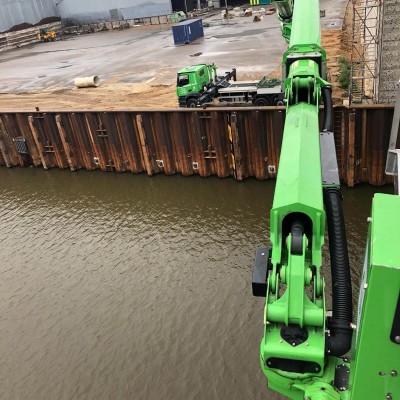

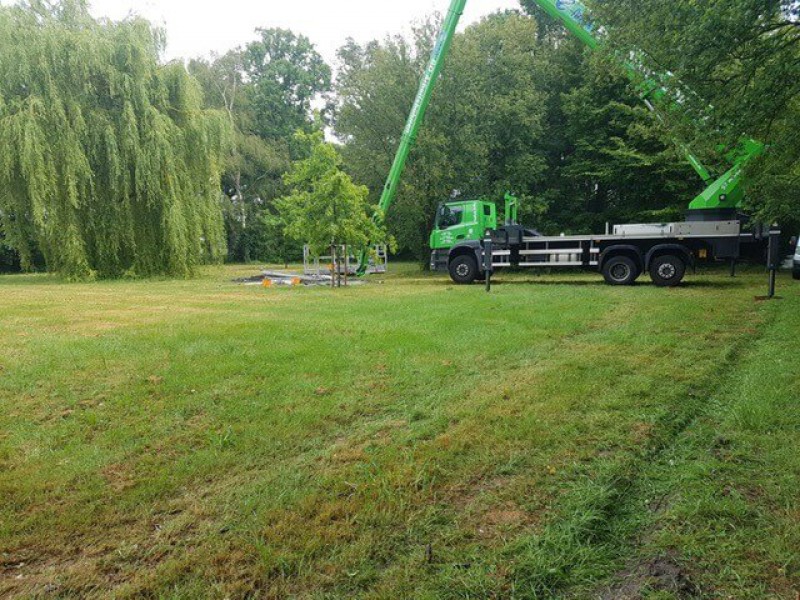

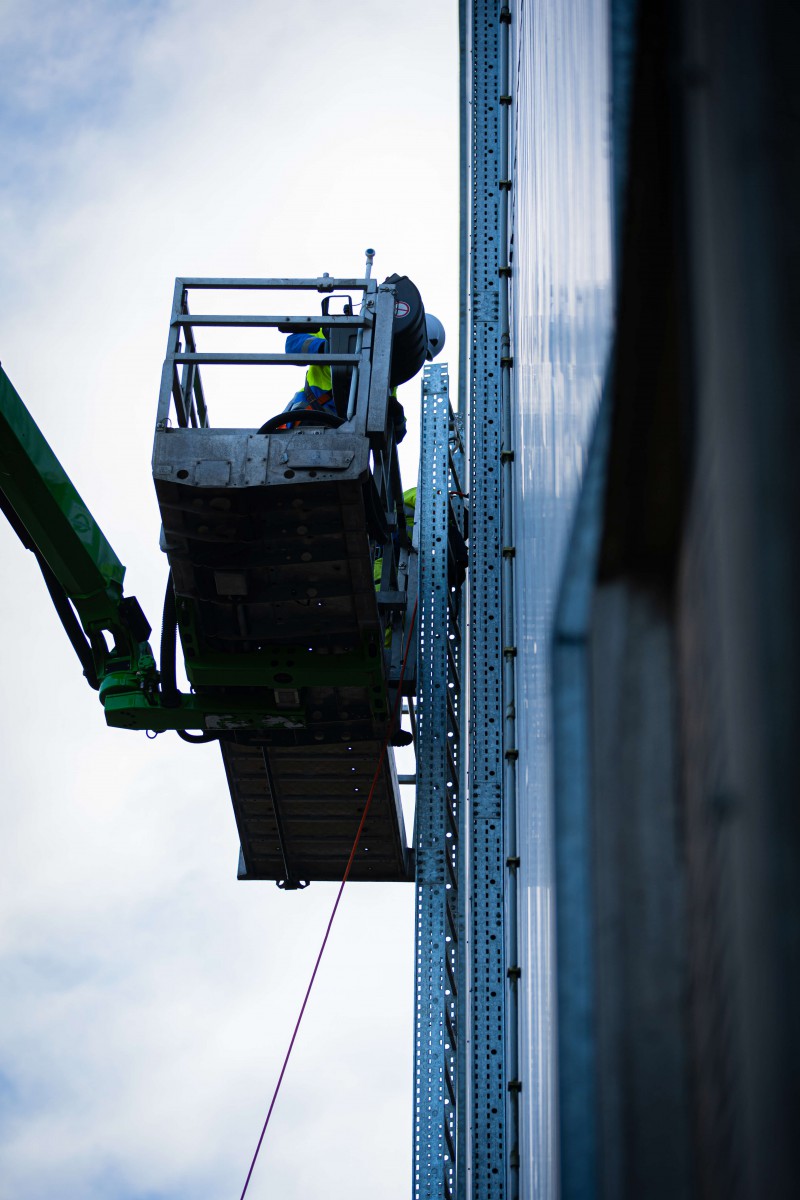

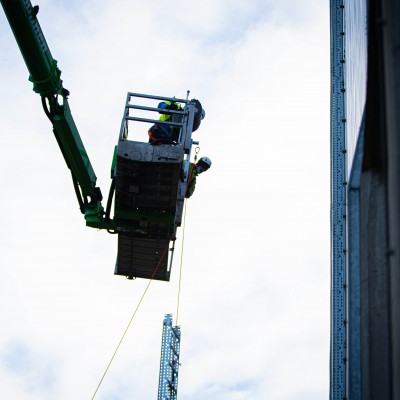

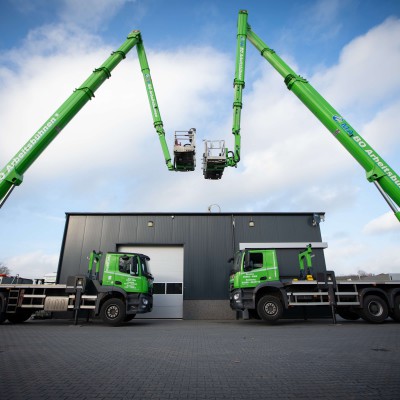

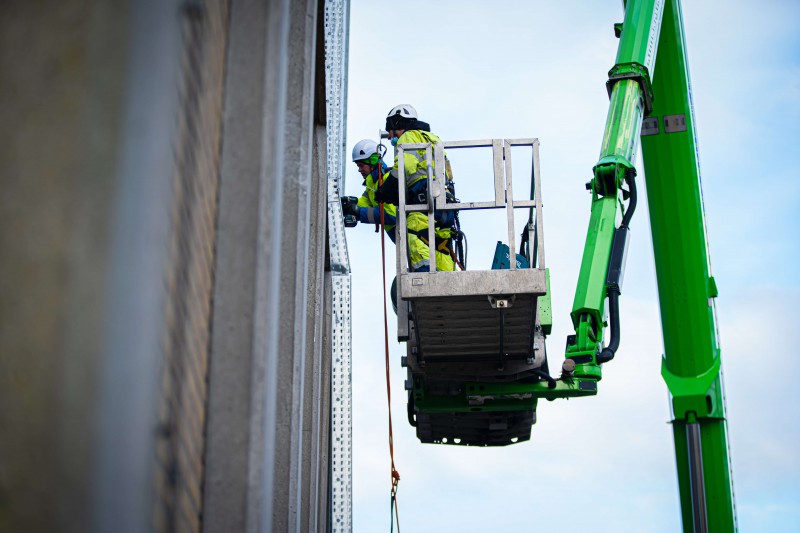

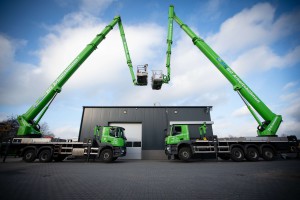

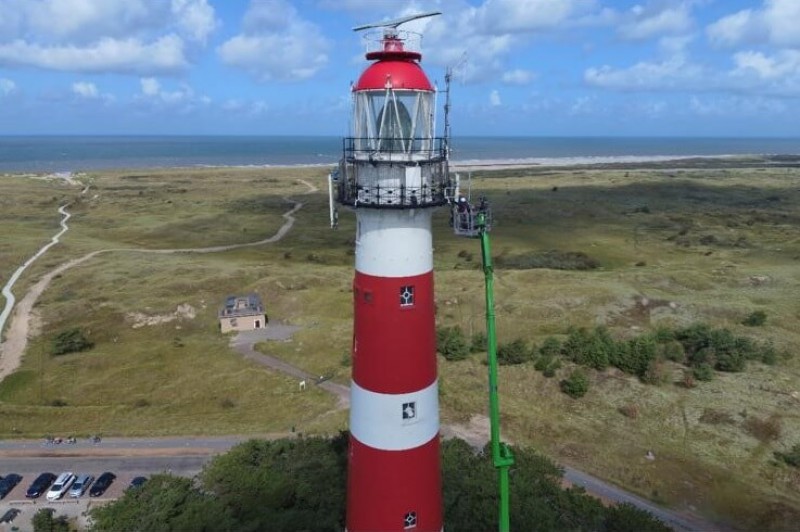

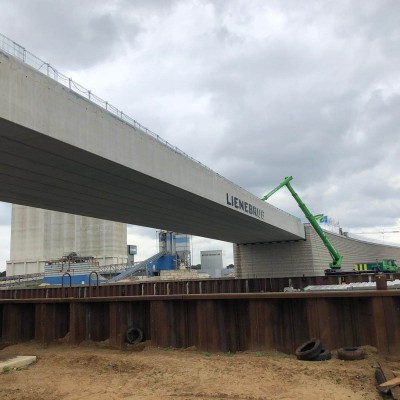

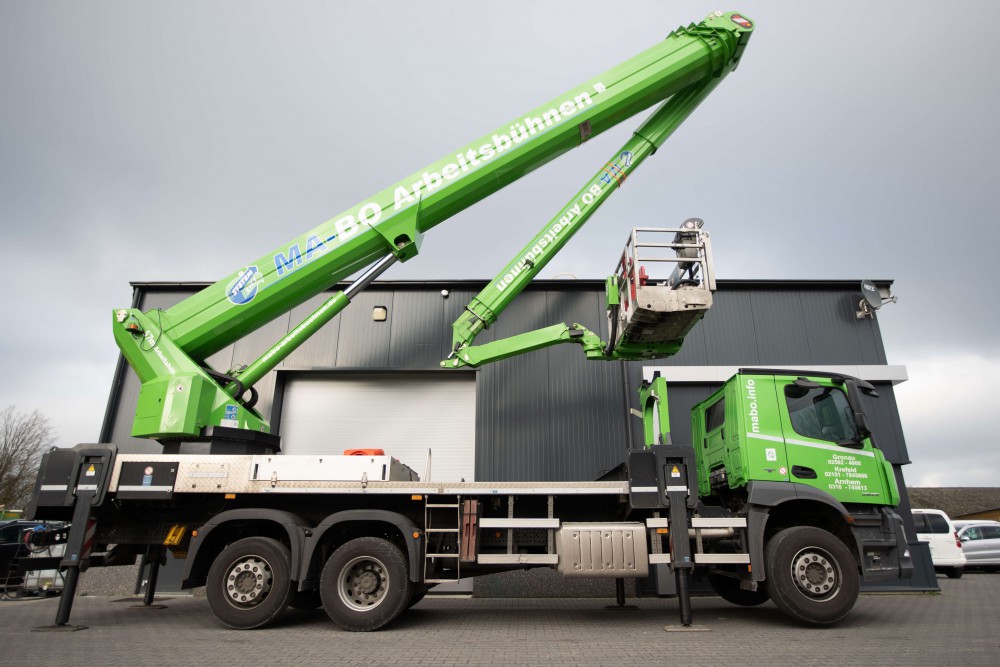

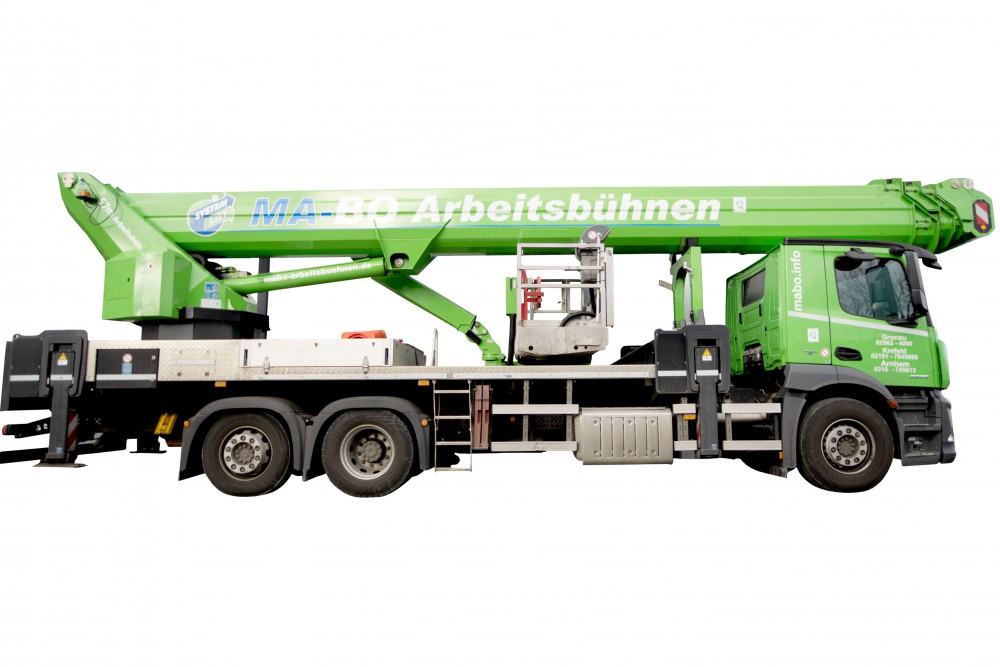

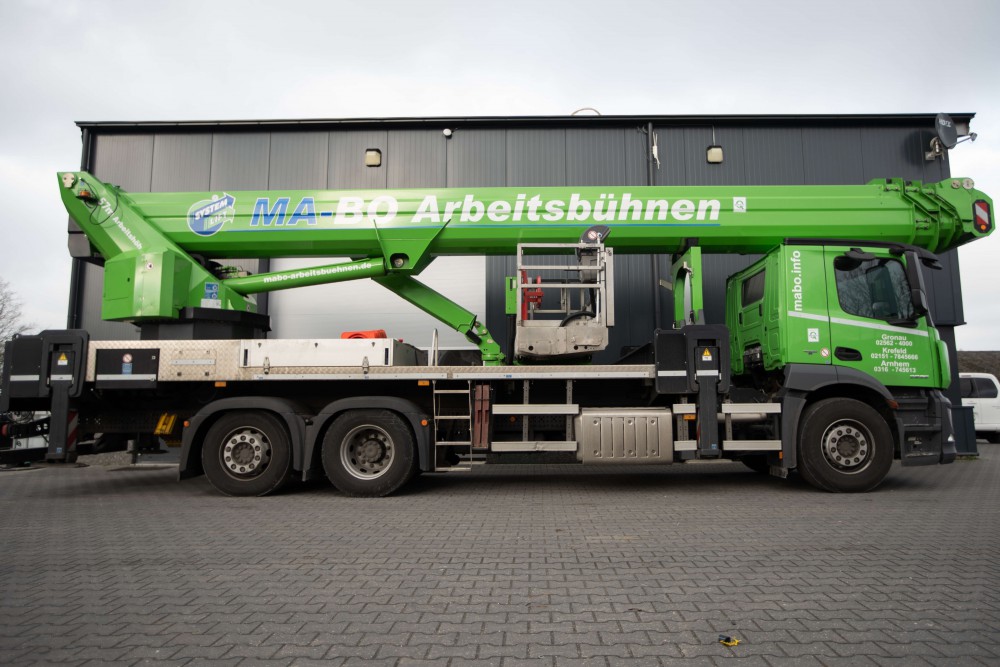

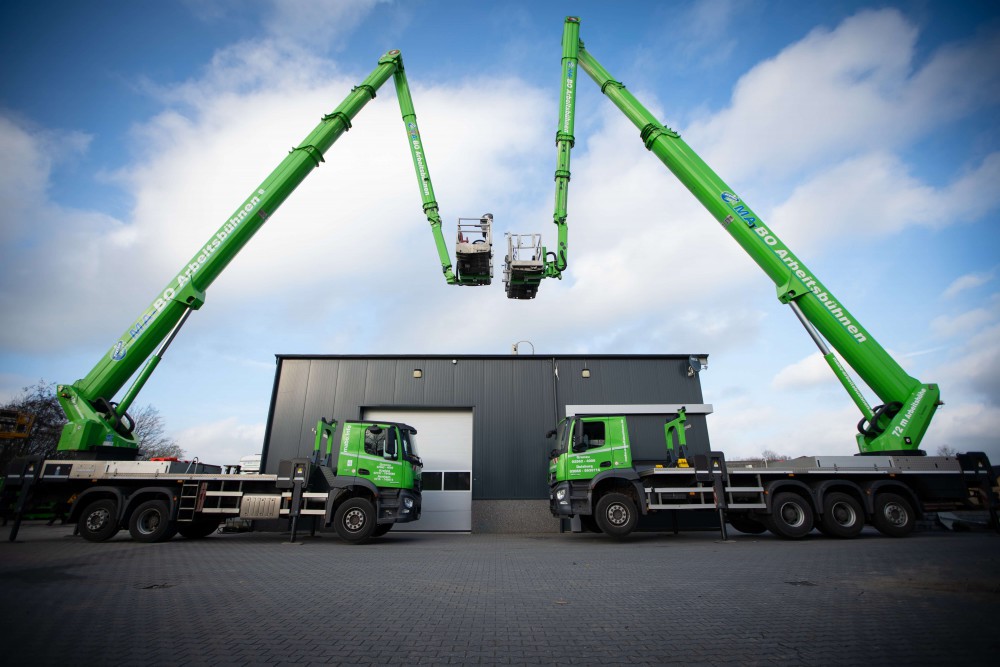

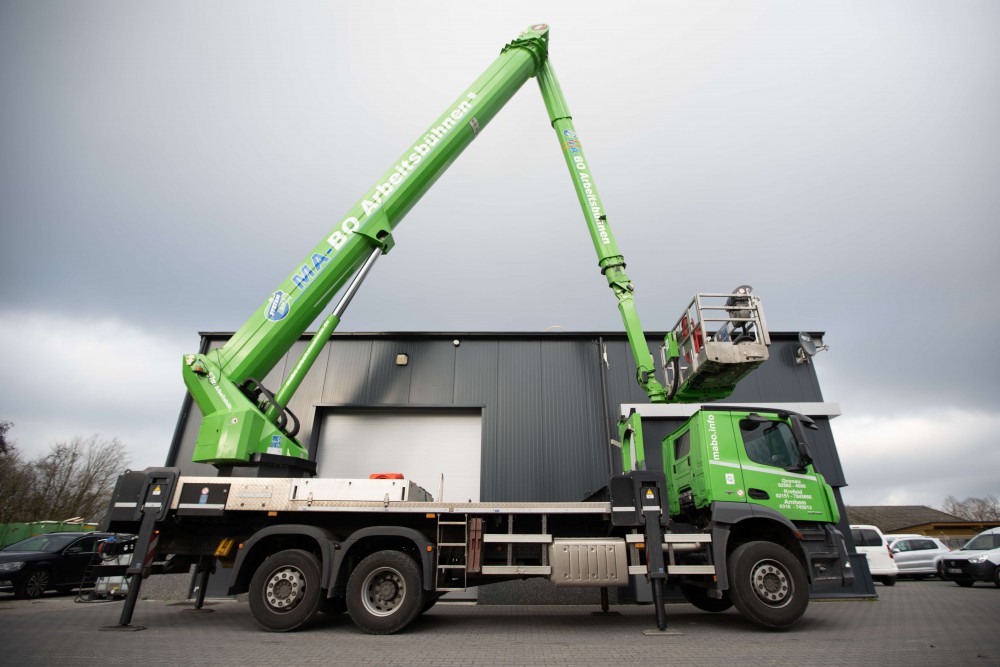

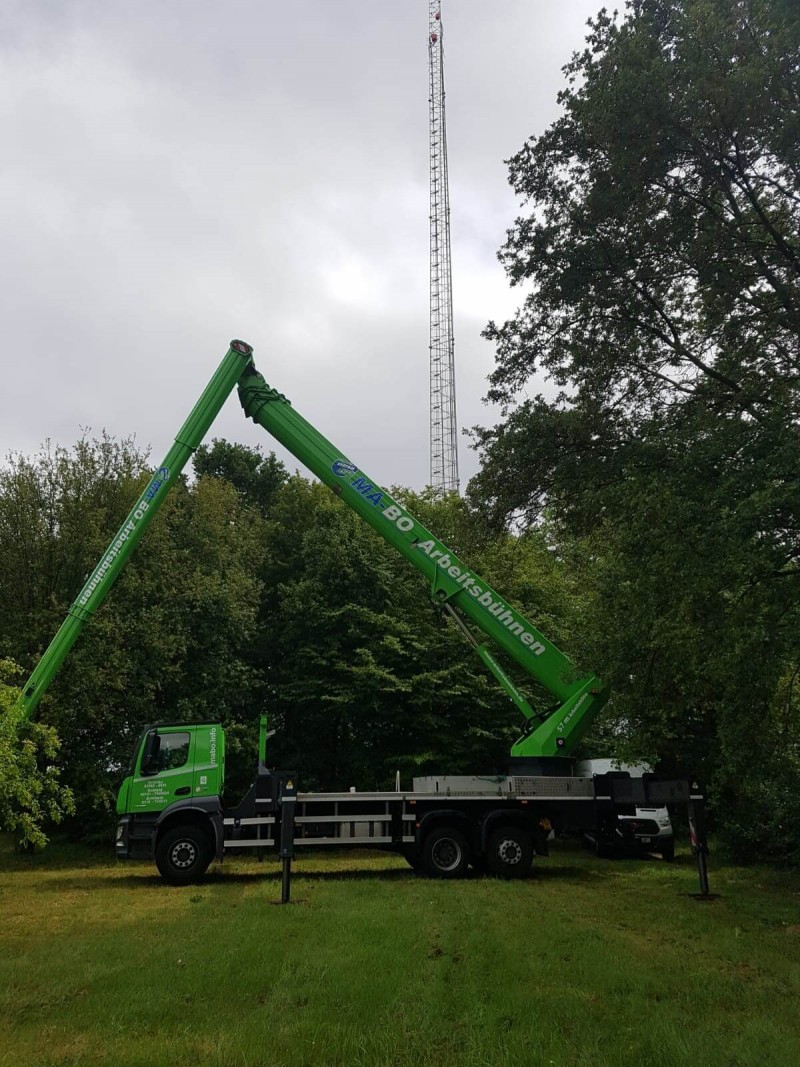

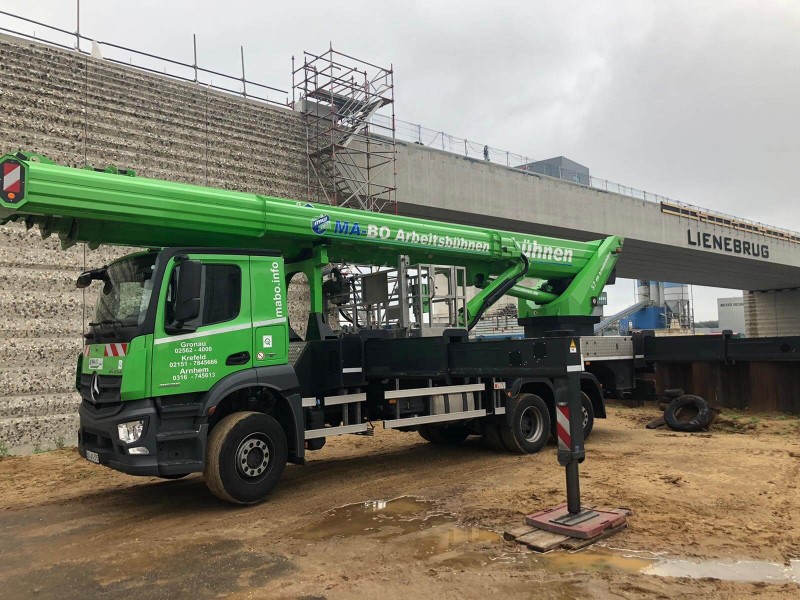

Truck mounted aerial platform LKW 570 GTK
Technical data
Maximum working height
: 57M
Maximum lateral reach
: 41M
Maximum basket load
: 600KG
Maximum stamp width
: 8,40M
Machine length
: 11,90M
Machine width
: 2,50M
Machine height
: 3,90M
Total weight
: 26.000KG

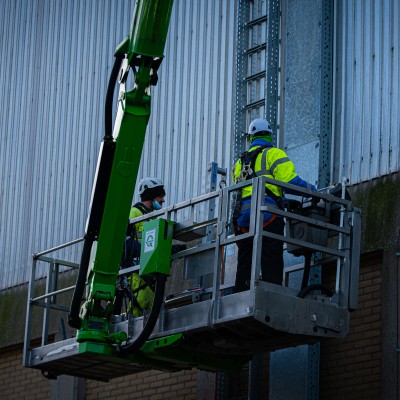

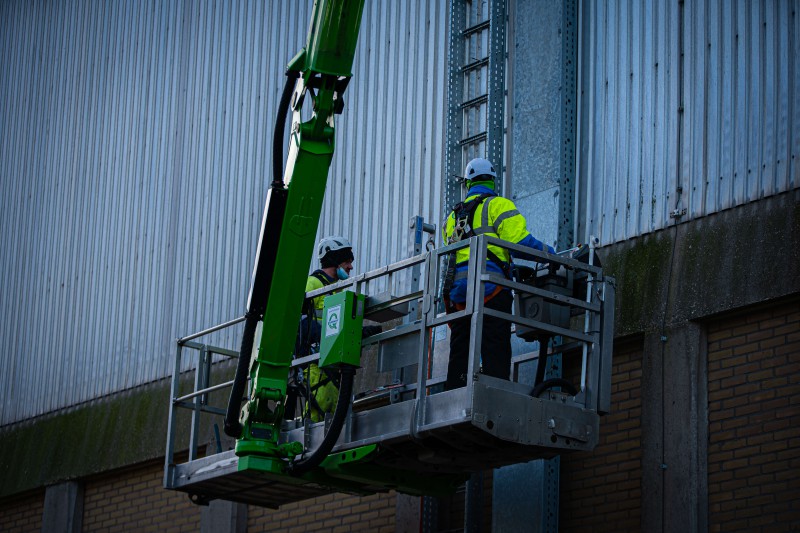

Dimensions basket ( L x W )
: 2,42 x 0,97
Rotation basket
: 220°
Propulsion
: Diesel
JIB
: Yes
Tyre Type
: All weather
Contact
Features
| Automatic deployment | |
| Only with Operator (C driving license) | |
| Support function in vehicle profile | |
| On demand with powerliftsystem | |
| 600KG Loading/lifting capacity | |
| 230V connection in basket | |
| with Jib |
