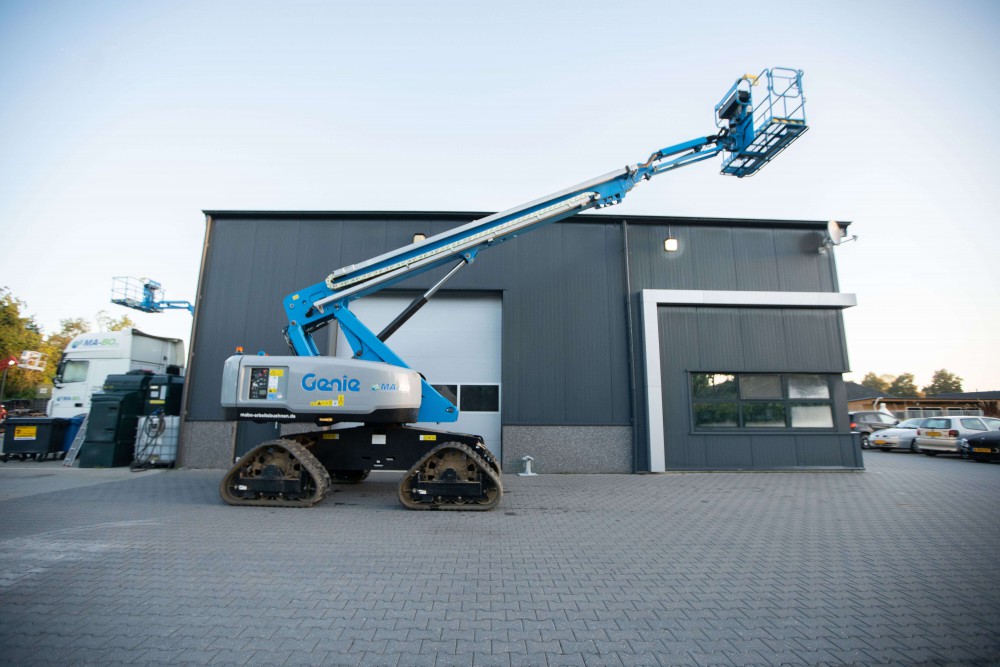

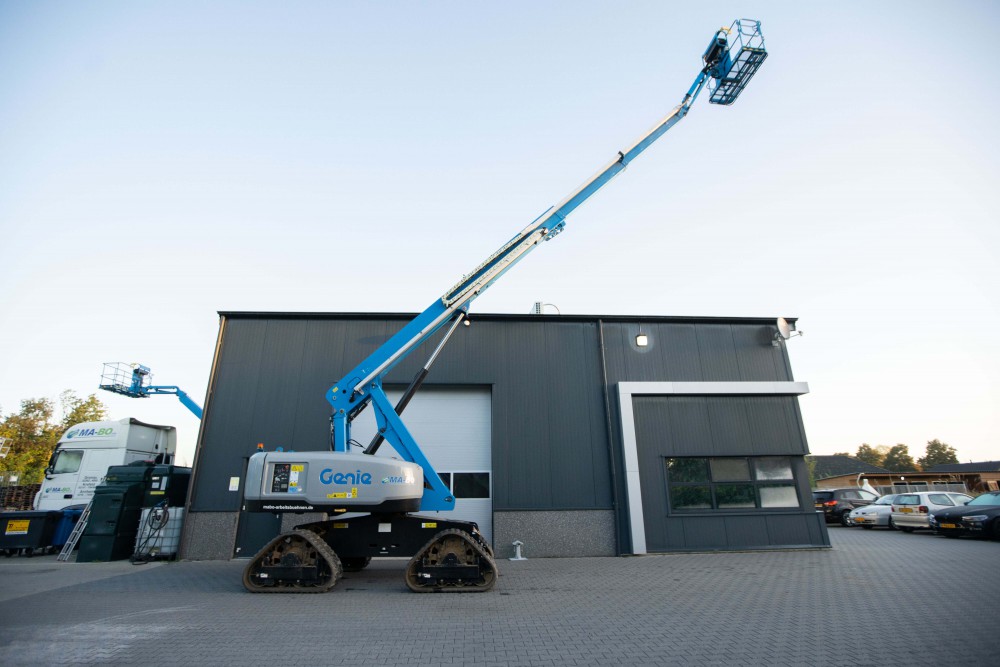

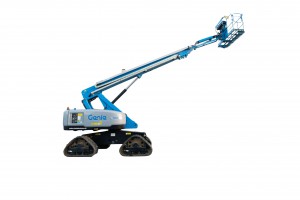

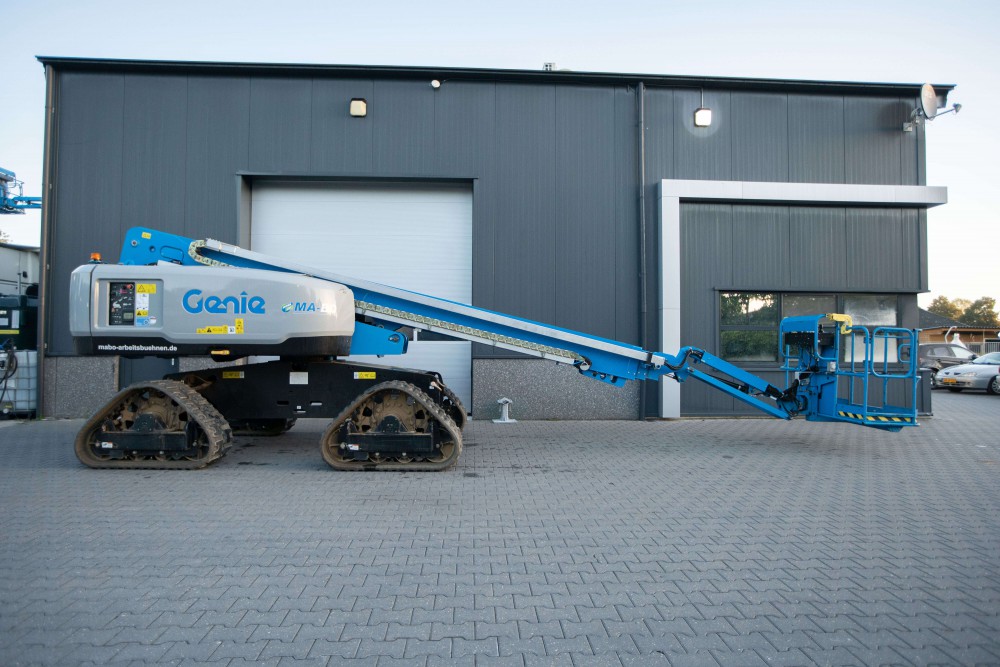

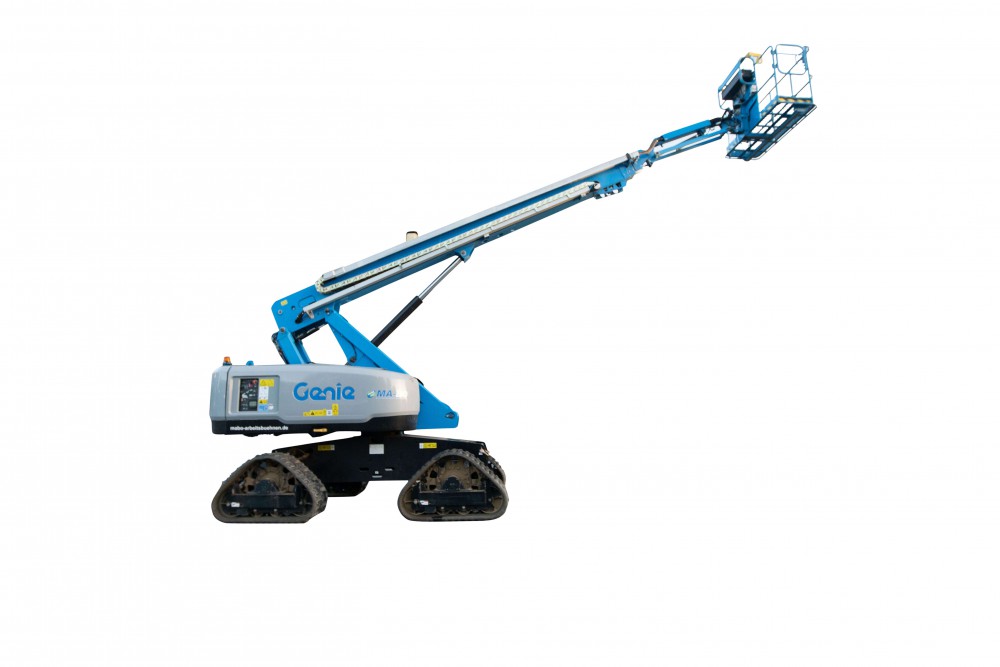

TB 220 DAK-T
Technical data
Maximum working height
: 21,80M
Maximum lateral reach
: 17,10M
Maximum stamp width
: N/A
Machine length
: 9,50M
Machine width
: 2,49M
Machine height
: 2,72M
Total weight
: 10.024KG
Dimensions basket ( L x W )
: 0,91 x 2,44
Rotation basket
: 135ยบ
Propulsion
: Diesel
JIB
: Yes
Tyre Type
: Caterpillar ( 4 x 4 )
Maximum basket load
: 227KG
Contact
Features
| Selfdriving | |
| With JIB | |
| Telescopic platform | |
| Tracks | |
| Mobile on full height | |
| Fourwheel drive |
